DIY IR Remote Control Switch



Project 7: DIY IR Remote Control Switch

---

Objective:

To build a DIY Infrared (IR) remote control switch that can turn ON/OFF an LED (or appliance) using a TV/DVD remote.

---

Components Required:

1. IR Receiver Module (TSOP1738)
2. Arduino Uno (or ATtiny85 for a compact design)
3. NPN Transistor (BC547)
4. Resistors – 220Ω, 1KΩ, 10KΩ
5. Relay Module (5V)
6. LED (or appliance)
7. Power Supply (9V Battery / 5V Adapter)
8. Breadboard & Wires
9. Any IR Remote (TV, DVD, etc.)

---

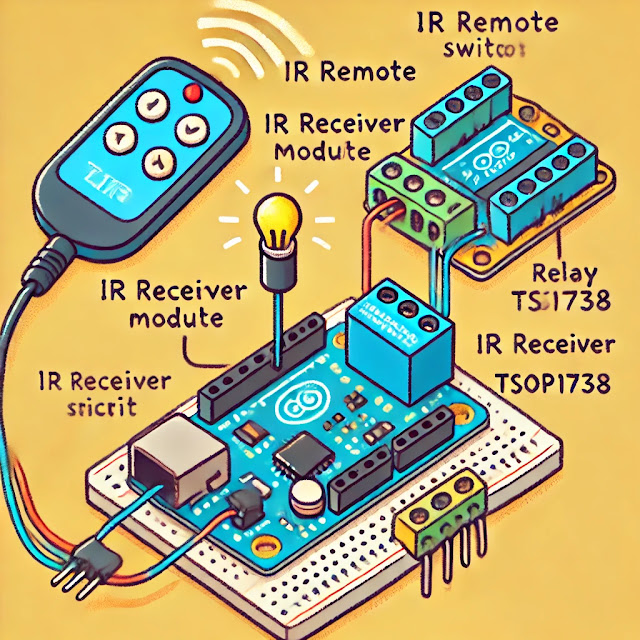

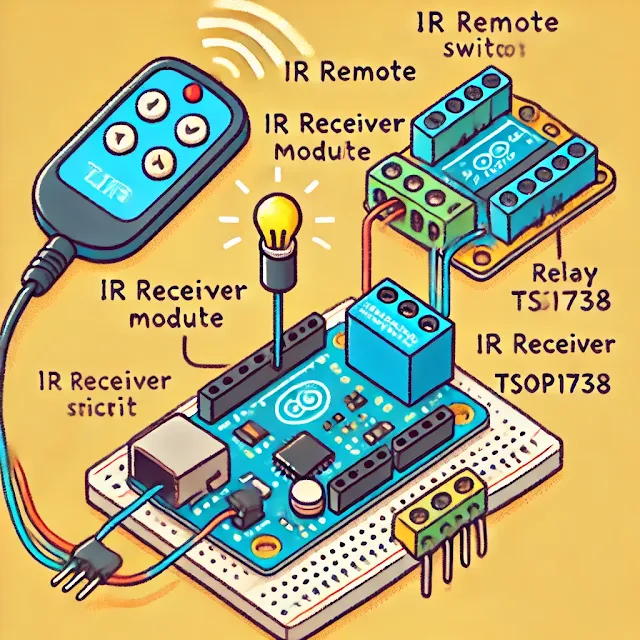

Circuit Diagram:

(A schematic can be designed in Fritzing or Tinkercad.)

---

Step-by-Step Instructions:

Step 1: Connect the IR Receiver Module

• TSOP1738 has 3 pins:
  • VCC → 5V
  • GND → GND
  • OUT → Arduino Digital Pin (D2)

Step 2: Decode the Remote Signals

• Upload an IR decoding sketch to Arduino using the IRremote library.
• Open the Serial Monitor and press buttons on the remote.
• Note down the unique HEX codes of the buttons.

Step 3: Control the LED/Relay

• Program Arduino to toggle the LED/Relay when a specific IR code is received.

Step 4: Power the Circuit

• Use a 9V battery or 5V adapter for stable operation.

---

Code for Arduino:

cpp
#include <IRremote.h>

int RECV_PIN = 2;
int LED = 7;
IRrecv irrecv(RECV_PIN);
decode_results results;

void setup() {
  Serial.begin(9600);
  irrecv.enableIRIn();
  pinMode(LED, OUTPUT);
}

void loop() {
  if (irrecv.decode(&results)) {
    Serial.println(results.value, HEX);
    if (results.value == 0xFFA25D) { // Replace with your remote's button code
      digitalWrite(LED, !digitalRead(LED)); // Toggle LED
    }
    irrecv.resume();
  }
}

---

How It Works:

1. The IR receiver detects remote signals.
2. Arduino decodes the signal and checks the button code.
3. If the button matches, it toggles the LED/Relay ON or OFF.
4. The appliance/light operates like a remote-controlled switch.

---

Customization Ideas:

💡 Control multiple appliances using different remote buttons.
💡 Use ATtiny85 for a compact and low-power version.
💡 Add a display to show which device is ON/OFF.

Speaker

4 Ohm 3 Watt Speaker In Pakistan

Rs 120 PKR

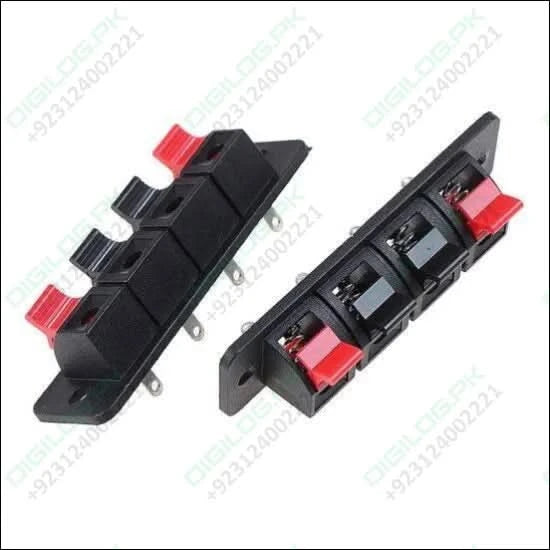

4 Positions Speaker Socket Connector Terminal Push In Jack Spring Load Audio Speaker Terminals In Pakistan

Rs 30 PKR

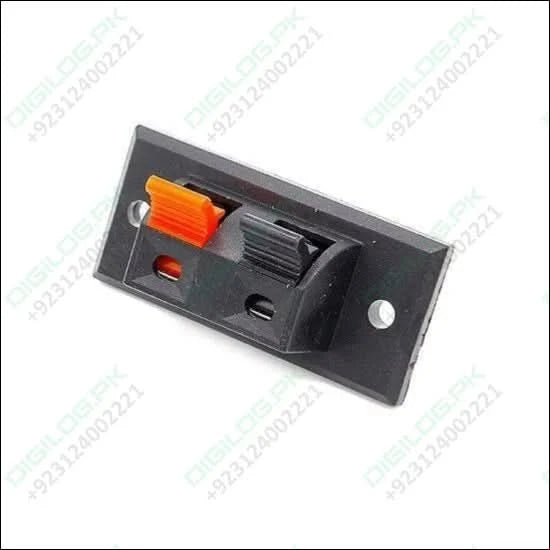

2 Positions Speaker Socket Connector Terminal Push In Jack Spring Load Audio Speaker Terminals in Pakistan

Rs 30 PKR

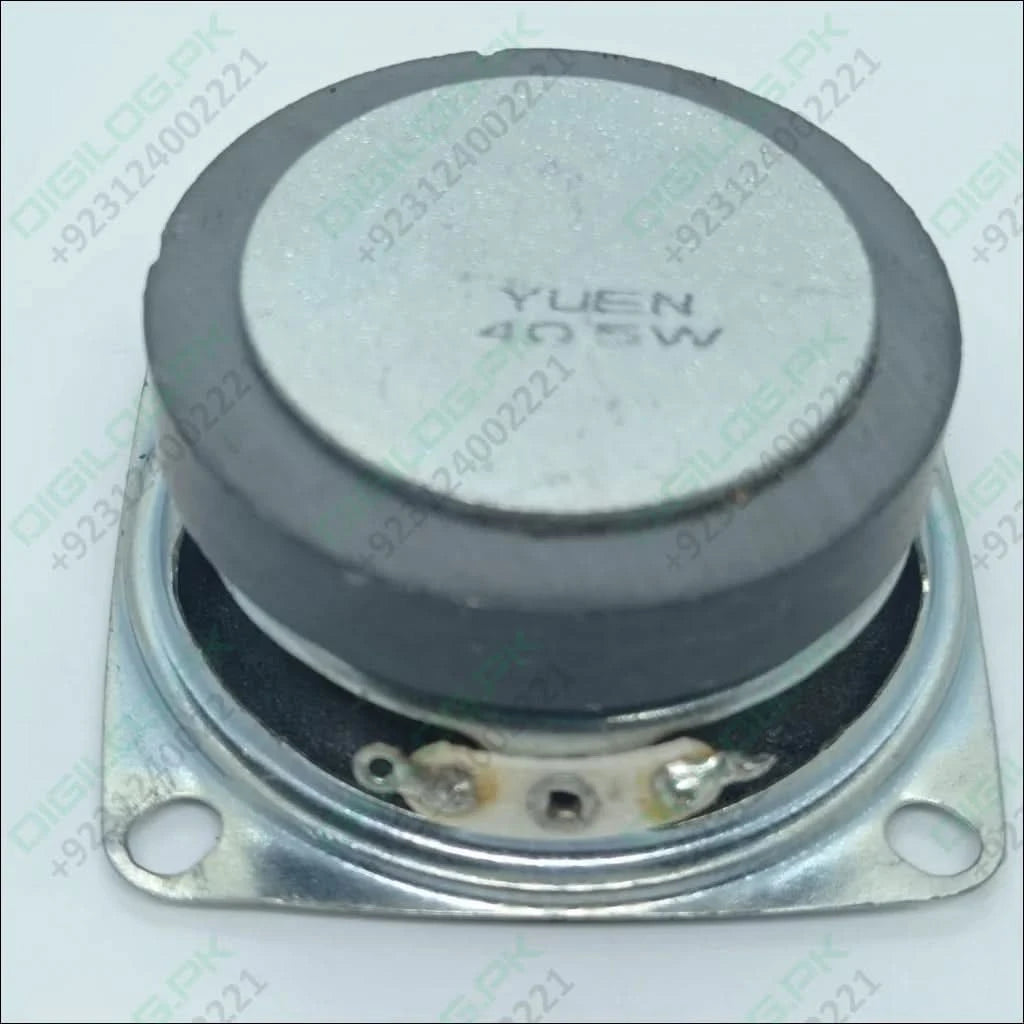

4 Ohm 5 Watt Speaker In Pakistan

Rs 140 PKR

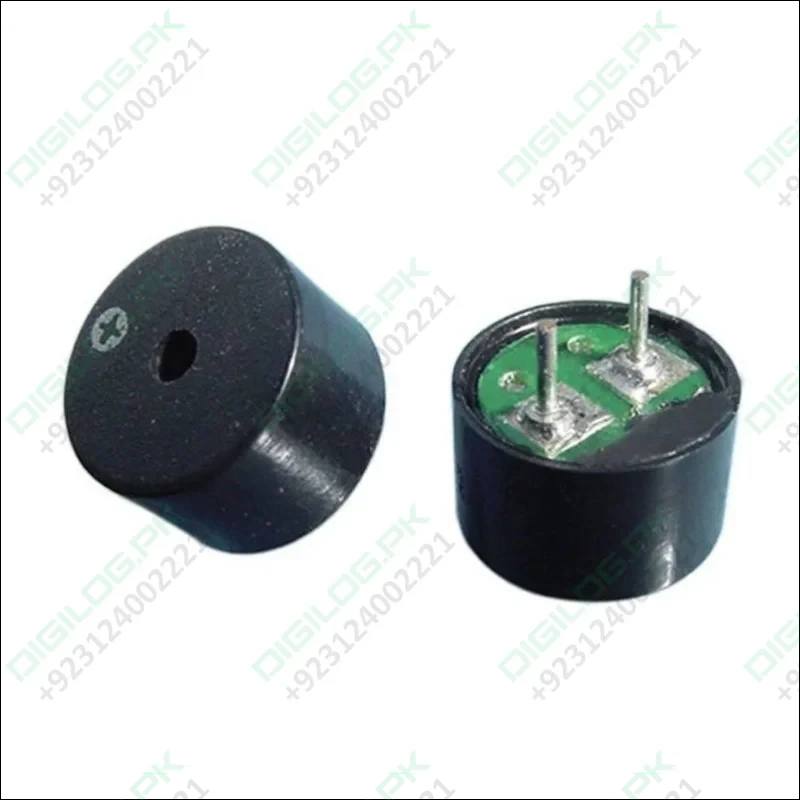

Arduino Passive Buzzer Speaker | Mini Piezo Buzzer Module For Diy Projects In Pakistan

Rs 25 PKR

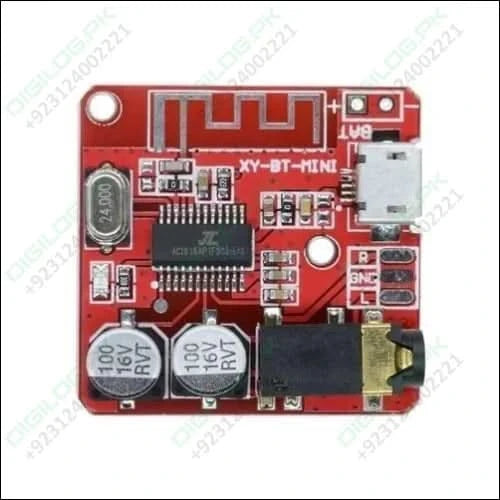

Mp3 Bluetooth 4.1 5v Decoder Car Speaker Audio Stereo Amplifier Board Module

Rs 330 PKR

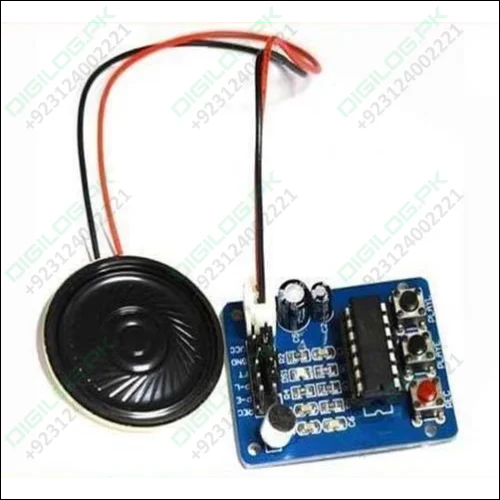

Isd1820 Recording And Playback Module With On Board Mic And Loud Speaker

Rs 450 PKR

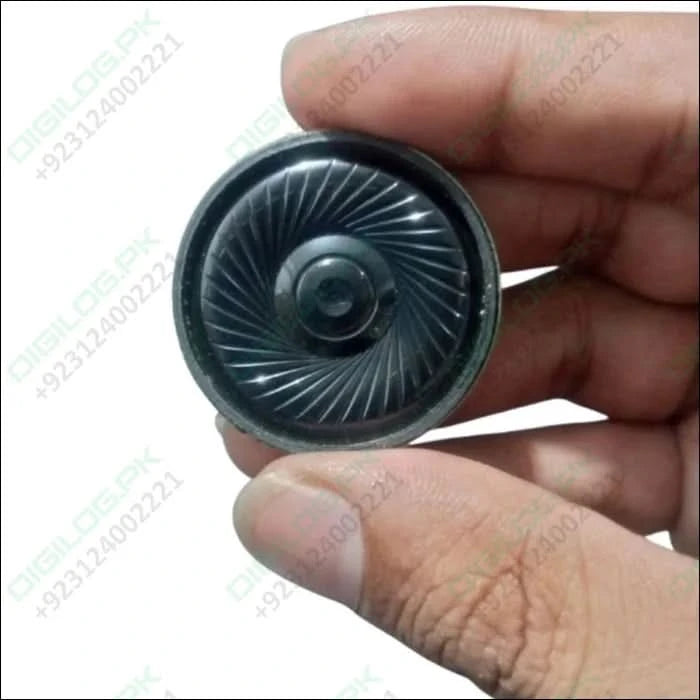

32 ohm 0.1w speaker

Rs 100 PKR

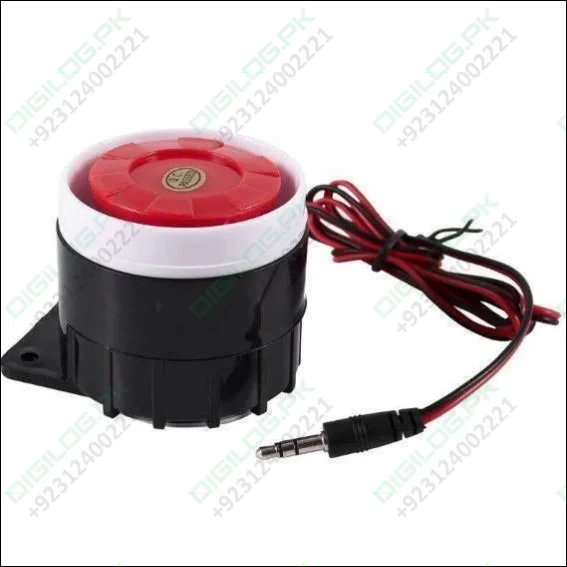

12v Piezo Buzzer Alarm Speaker

Rs 850 PKR

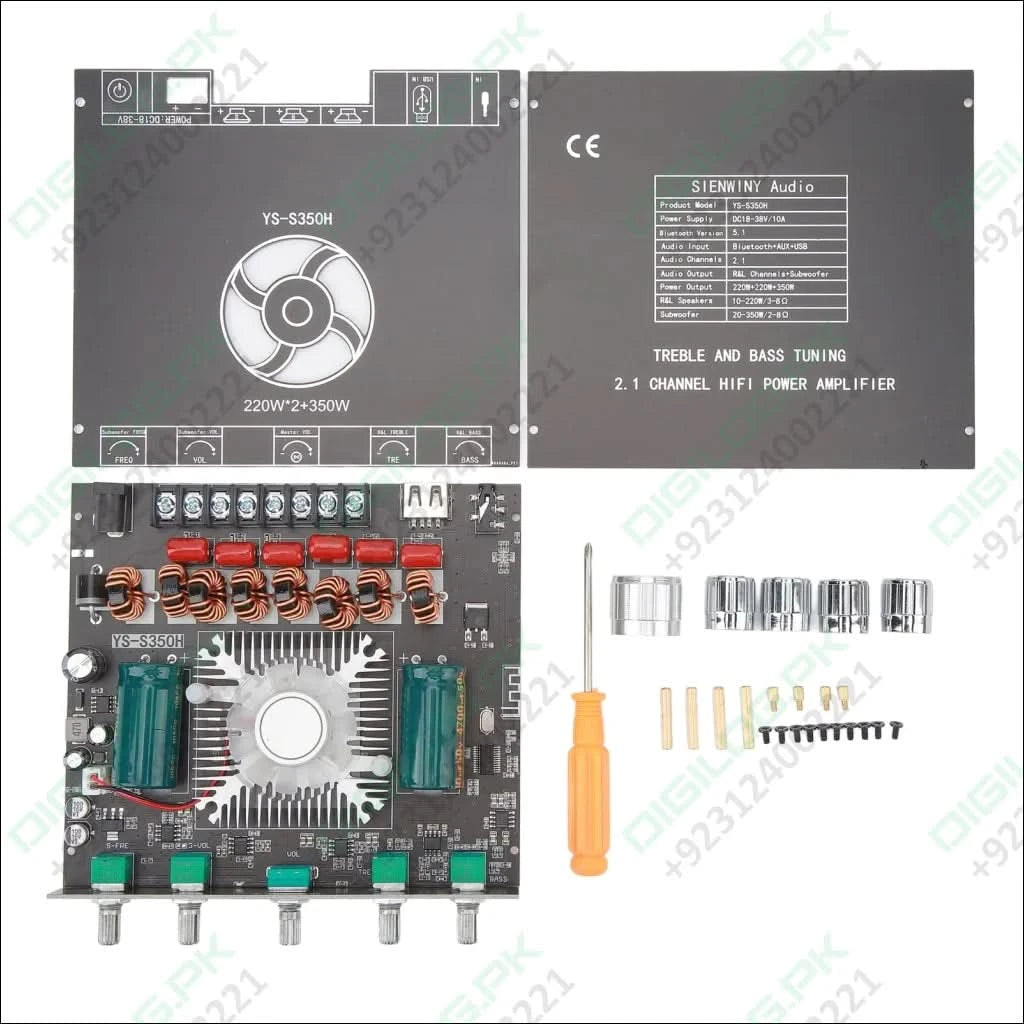

XY S350H 220Wx2 350W 2.1 Channel Bluetooth Power Amplifier Board 18V‑38V Bluetooth Speaker Audio Amplifier Module Channel Subwoofer Amplifier Board

Rs 14,500 PKR

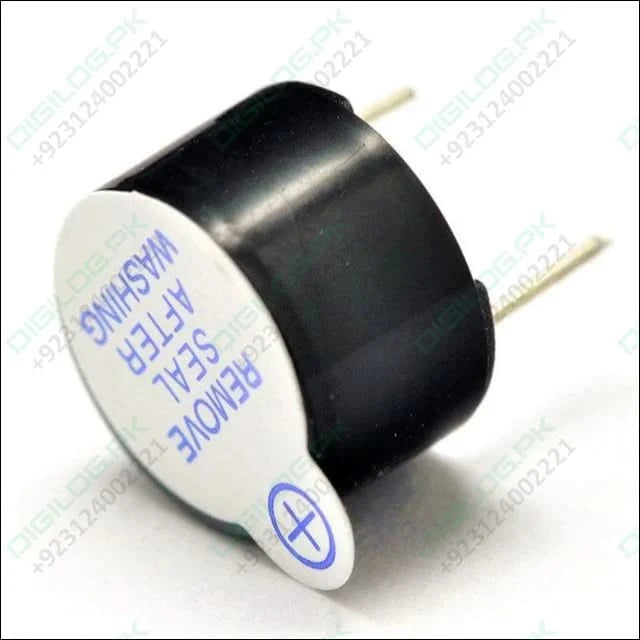

Active Piezo Buzzer 3v To 12V Active Buzzer for Arduino

Rs 28 PKR

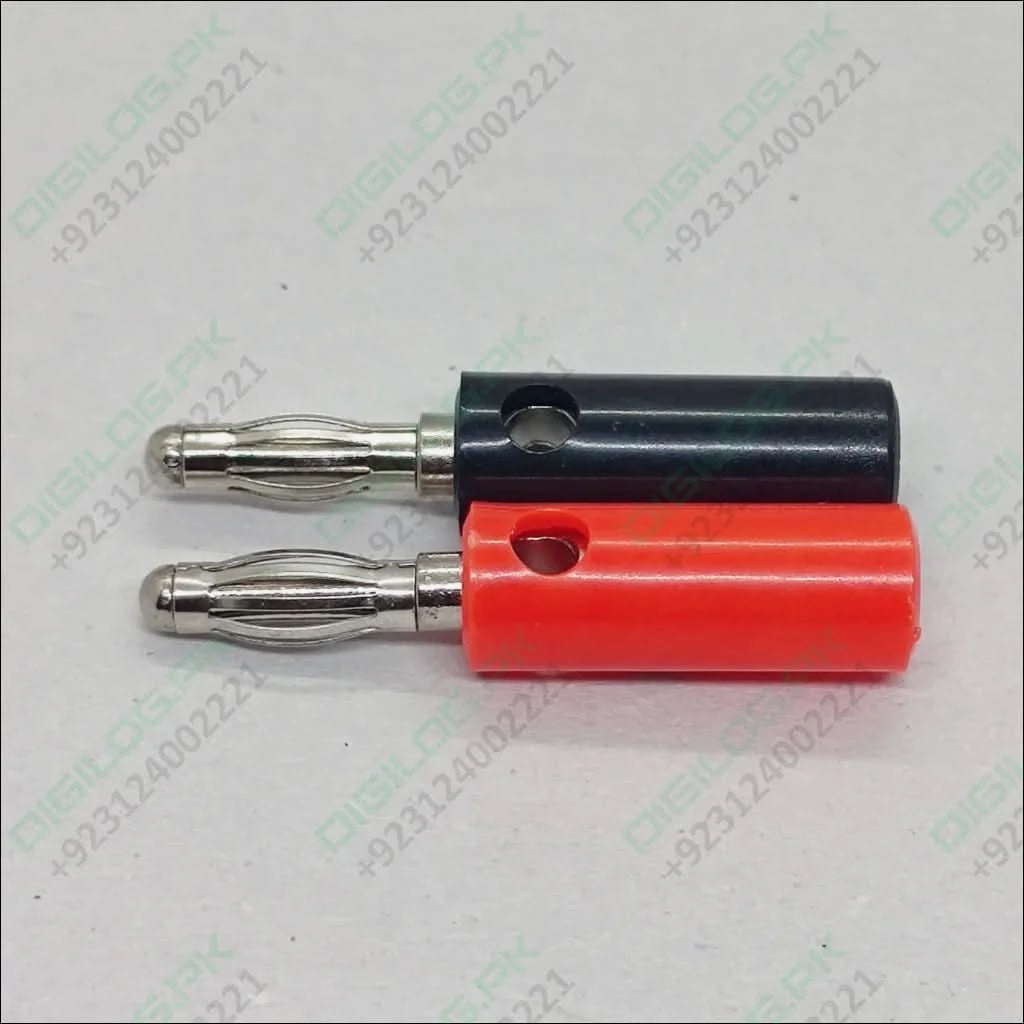

4mm Banana Plugs

Rs 30 PKR

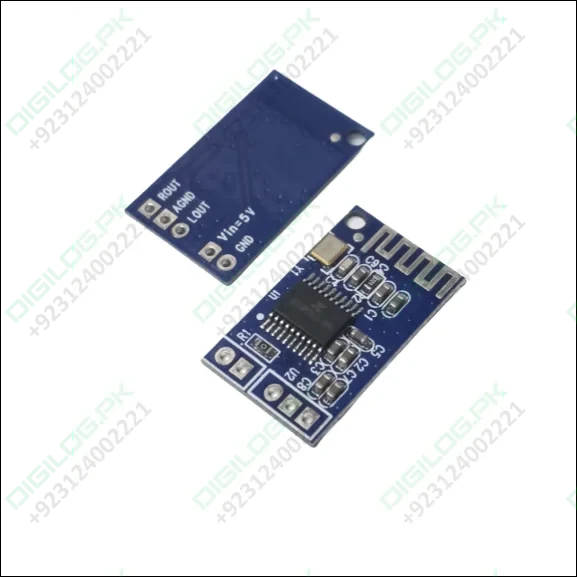

Ca-6928 Bluetooth Stereo Audio Receiver Module Ca-6928 Bluetooth Stereo Audio Module For Mini Amplifier Board 3.5v~5v

Rs 160 PKR

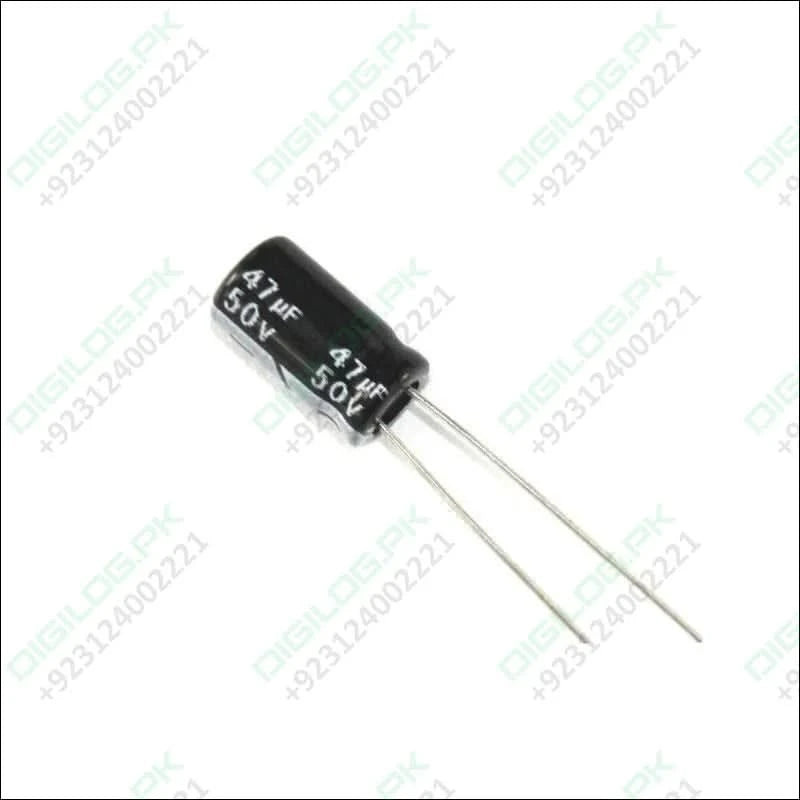

Aluminum Electrolytic Capacitors 47uf 50v Capacitor

Rs 3 PKR

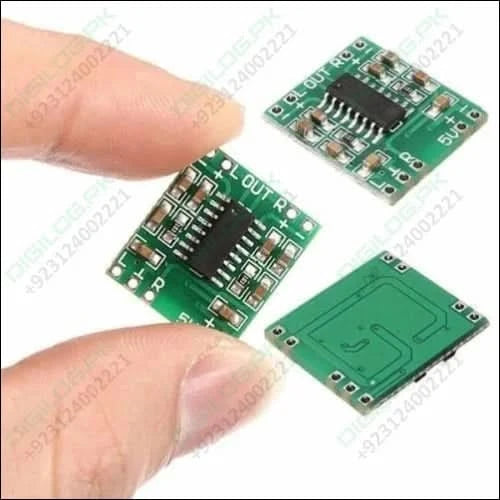

Digital Stereo Audio Amplifier Board Pam8403 Mini Two Channel 2x3w Class d Audio Power Amplification Module

Rs 45 PKR

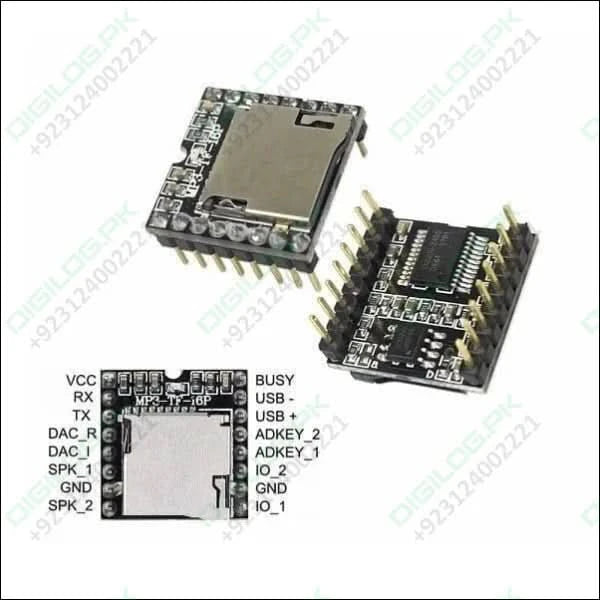

Open Source Mp3-tf-16p Mini Mp3 Player Module With Serial Port
